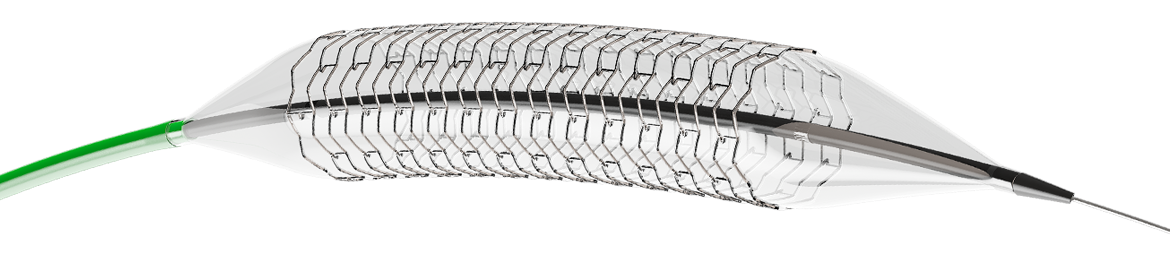

The QBX (5 F) is a flexible, balloon expandable stent, made of cobalt chromium alloy. Micro-Invasive designed for peripheral vessel diameters from 5.0 mm to 10.0 mm. The QBX (5 F) is mounted on an 0.018 over-the-wire (OTW) delivery system and is available in a full range of diameters and lengths.

The Peripheral Balloon Expandable Stent System provides a means of safely advancing the stent through the peripheral vessels to the desired location.

Key Features:

‣ 5 F Introducer compatibility for all sizes
‣ Low crossing profile for all diameters
‣ Combination low shaft and tip entry profile
‣ Soft, tapered balloon tip for less trauma
‣ Flexible stent design
‣ High radial strength

Benefits:

‣ Simple to use
‣ Reduce puncture site diameter
‣ Easy deployment and precise placement
‣ Even and accurate stent expansion
‣ Good accessibility and high pushability across the peripheral vessels

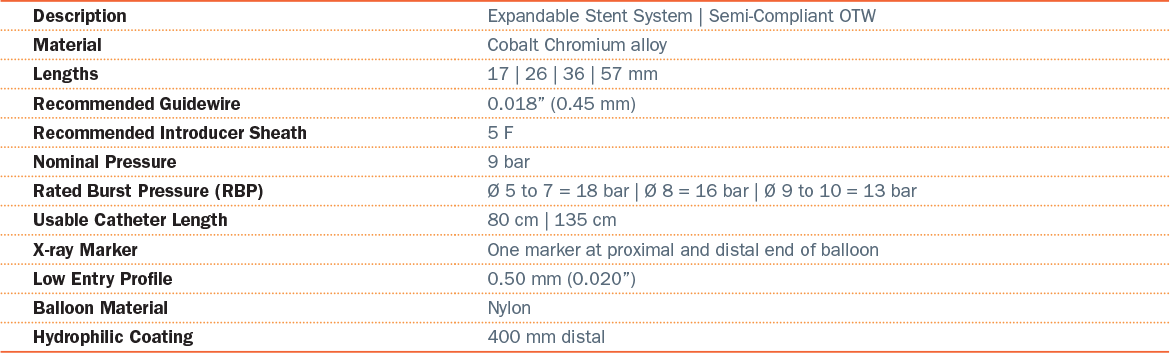

Technical Specifications:

For further inquiries regarding MIT QBX 18, call +49 4171 6578 0 or email us at info@q3medical.com

Manufactured by Q3 Medical Germany GmbH, Boschstraße 16, 21423 Winsen, Germany
