The SX Peripheral Vascular Self Expanding Stent System combines highly durable nitinol stent with a flexible delivery system to provide proven clinical results.

Designed to deliver a self-expanding nitinol stent to the peripheral vasculature via a sheathed delivery device.

Traditional Pin Pull Delivery System:

Accuracy & Ease of Use:

‣ Nitinol Stent with tantalum markers provides excellent visibility under fluoroscopy
‣ Minimal Foreshortening ensures accurate positioning and placement
‣ Delivery Catheter ensures accurate and easy 1:1 delivery

Enhanced Catheter:

‣ Durability for greater shelf life and improved pushability
‣ Accuracy provided through lower deployment force for more accurate stent placement
‣ Integrated Connector Port for ease of flushing and injection of contrast material
‣ Usable working Lengths of 80 and 120 cm, guided over 0.035” guidewire

Flexibility & Strength:

‣ Unique Wave Design provides flexibility without sacrificing radial strength
‣ Flexible Connectors provide high resistance against bending, torsion, and compression stress
‣ Highly Flexible Delivery Catheter facilitates navigation of tortuous anatomy

Technical Specifications:

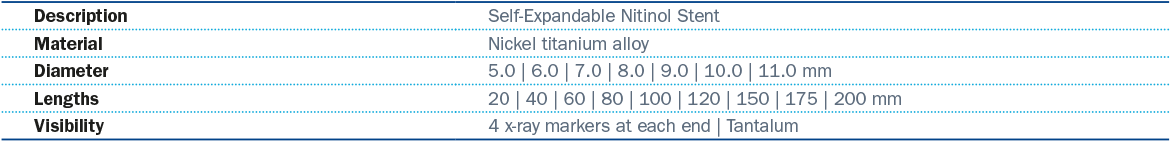

Stent

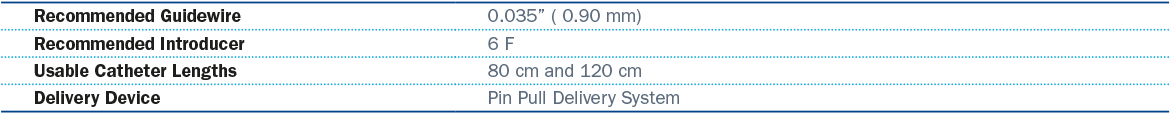

Stent Delivery System

For further inquiries regarding MIT SX, call +49 4171 6578 0 or email us at info@q3medical.com

Manufactured by Q3 Medical Germany GmbH, Boschstraße 16, 21423 Winsen, Germany
